Change the Color of Shape in Excel Based on Cell Value using VBA

Tools you can use

Let us assume I have a rectangle shape (just one shape) on my worksheet and I want the macro to change the color of the shape based on certain values entered in the cells. I have a single column named status , which has three rows.

Here are the conditions.

• When I enter the value shipped in the second row (A2), the color turns to yellow .
• When I enter the value delivered in the third row (A3), the color turns green .
• When I enter the value on hold in the fourth row (A4), the color turns red .
• When there are no values in either the cells in all the 3 rows, the shape’s color would be white .

Open an Excel file and insert a rectangle shape in your worksheet. You can set the default color as white.

Click Alt+F11 to open the VBA editor. From the Project Explorer double click the Sheet where you have the data. You can also right click the sheet tab and choose View Code .

Write the code inside Worksheet_Change event. Since, I want to change the shape’s color instantly when the value in any cell changes.

The color of the shape changes according to the values, which I have explained. Now, see this line in the code …

The Shapes() function

The function Shapes() takes a parameter, the name of the shape. You can get the name of the shape by clicking on the shape and see its name in the Name Box . You can change the name of the shape right there.

Similarly, you can add different shapes like a circle or an arrow , get its name, provide the name to the function and change the shape’s color using the code.

Also, do this : You can change the color of multiple shapes using the example I have shown above. Simply add more shapes to your sheet and provide the names of each shape to the function. Like this …

Источник

Working with shapes (drawing objects)

Shapes, or drawing objects, are represented by three different objects:

Object	Description
Shapes collection	Use to create shapes and to iterate through all the shapes on a given worksheet.
ShapeRange collection	Use to modify multiple shapes the same way you work with multiple shapes in the user interface.
Shape object	Use to format or modify a single shape.

Setting properties for a shape

Many formatting properties of shapes are not set by properties that apply directly to the Shape or ShapeRange object. Instead, related shape attributes are grouped under secondary objects, such as the FillFormat object, which contains all the properties that relate to the shape’s fill, or the LinkFormat object, which contains all the properties that are unique to linked OLE objects.

To set properties for a shape, you must first return the object that represents the set of related shape attributes and then set properties of that returned object. For example, you use the Fill property to return the FillFormat object, and then you set the ForeColor property of the FillFormat object to set the fill foreground color for the specified shape, as shown in the following example.

Applying a property or method to several shapes at the same time

In the user interface, you can perform some operations with several shapes selected; for example, you can select several shapes and set all their individual fills at once. You can perform other operations with only a single shape selected; for example, you can edit the text in a shape only if a single shape is selected.

In Visual Basic, there are two ways to apply properties and methods to a set of shapes. These two ways allow you to perform any operation that you can perform on a single shape on a range of shapes, whether or not you can perform the same operation in the user interface.

If the operation works on multiple selected shapes in the user interface, you can perform the same operation in Visual Basic by constructing a ShapeRange collection that contains the shapes you want to work with, and applying the appropriate properties and methods directly to the ShapeRange collection.

If the operation does not work on multiple selected shapes in the user interface, you can still perform the operation in Visual Basic by looping through the Shapes collection or through a ShapeRange collection that contains the shapes you want to work with, and applying the appropriate properties and methods to the individual Shape objects in the collection.

Many properties and methods that apply to the Shape object and ShapeRange collection fail if applied to certain kinds of shapes. For example, the TextFrame property fails if applied to a shape that cannot contain text.

If you are not positive that each of the shapes in a ShapeRange collection can have a certain property or method applied to it, don’t apply the property or method to the ShapeRange collection. If you want to apply one of these properties or methods to a collection of shapes, you must loop through the collection and test each individual shape to make sure it is an appropriate type of shape before applying the property or method to it.

Creating a ShapeRange collection that contains all shapes on a sheet

You can create a ShapeRange object that contains all the Shape objects on a sheet by selecting the shapes and then using the ShapeRange property to return a ShapeRange object containing the selected shapes.

In Microsoft Excel, the Index argument is not optional for the Range property of the Shapes collection, so you cannot use this property without an argument to create a ShapeRange object containing all shapes in a Shapes collection.

Applying a property or method to a ShapeRange collection

If you can perform an operation on multiple selected shapes in the user interface at the same time, you can do the programmatic equivalent by constructing a ShapeRange collection and then applying the appropriate properties or methods to it. The following example constructs a shape range that contains the shapes named «Big Star» and «Little Star» on myDocument and applies a gradient fill to them.

The following are general guidelines for how properties and methods behave when they are applied to a ShapeRange collection.

Applying a method to the collection is equivalent to applying the method to each individual Shape object in that collection.

Setting the value of a property of the collection is equivalent to setting the value of the property of each individual shape in that range.

A property of the collection that returns a constant returns the value of the property for an individual shape in the collection if all shapes in the collection have the same value for that property. If not all shapes in the collection have the same value for the property, it returns the «mixed» constant.

A property of the collection that returns a simple data type (such as Long, Single, or String) returns the value of the property for an individual shape if all shapes in the collection have the same value for that property.

The value of some properties can be returned or set only if there is exactly one shape in the collection. If the collection contains more than one shape, a run-time error occurs. This is generally the case for returning or setting properties when the equivalent action in the user interface is possible only with a single shape (actions such as editing text in a shape or editing the points of a freeform).

The preceding guidelines also apply when you are setting properties of shapes that are grouped under secondary objects of the ShapeRange collection, such as the FillFormat object. If the secondary object represents operations that can be performed on multiple selected objects in the user interface, you’ll be able to return the object from a ShapeRange collection and set its properties.

For example, you can use the Fill property to return the FillFormat object that represents the fills of all the shapes in the ShapeRange collection. Setting the properties of this FillFormat object will set the same properties for all the individual shapes in the ShapeRange collection.

Looping through a Shapes or ShapeRange collection

Even if you cannot perform an operation on several shapes in the user interface at the same time by selecting them and then using a command, you can perform the equivalent action programmatically by looping through a Shapes or ShapeRange collection that contains the shapes you want to work with, applying the appropriate properties and methods to the individual Shape objects in the collection.

The following example loops through all the shapes on myDocument and changes the foreground color for each AutoShape shape.

The following example constructs a ShapeRange collection that contains all the currently selected shapes in the active window and sets the foreground color for each selected shape.

Aligning, distributing, and grouping shapes in a ShapeRange

Use the Align and Distribute methods to position a set of shapes relative to one another or relative to the document that contains them.

Use the Group method or the Regroup method to form a single grouped shape from a set of shapes.

See also

Support and feedback

Have questions or feedback about Office VBA or this documentation? Please see Office VBA support and feedback for guidance about the ways you can receive support and provide feedback.

Источник

Streamline VBA to Change shape color on click in excel

I have a ‘form’ that contains set of questions on a worksheet (note this is not a userform and I don’t want to use one). Some answers are yes/no, others have multiple answers such as quantity (ie and the answer may be 1 or 2 or 3 or 4 etc).

The design of the ‘form’ on this worksheet calls for these answers to be shapes which the user clicks like a button to select their answer — Pls note I do not want to use Command buttons.

In this simple example I have 2 rectangle shapes one name “yes” and one name “no” When user clicks “yes”, the color fill of the shape changes to blue (and the “no” shape stays white). If user clicks “no” , the “no” shape turns blue, and “yes” goes white. It also populates and answer in A1 in this example.

I use the following code which works fine (although im sure could be cut down somewhat) however the problem comes when I need to replicate this code multiple times. For example, if I have a question that has multiple answers like Quantity (answers could be 1 or 2 or 3 or 4 or 5) then each macro (ie for button “1” ) needs and “active” piece of coder, and a “non active” piece to designate colours to the active shape and all the other non active shapes. This is very repetitive and the code quickly becomes verbose. Im hoping there is a way to keep the formatting (fill color, text color etc) in a separate macro such as “Sub Active” and “Sub Non_Active” rather than having to repeat it time after time. I’ve tried to use “Call” to grab the macro containing the formatting (like Call Active) but keep getting an error.

Источник

An Excel Blog For The Real World

A blog focused primarily on Microsoft Excel, PowerPoint, & Word with articles aimed to take your data analysis and spreadsheet skills to the next level. Learn anything from creating dashboards to automating tasks with VBA code!

VBA Coding For Shapes (The Complete Guide)

VBA Coding With Shape Objects

In this comprehensive guide, you will be learning all the ways you can create and manipulate shapes with VBA macros.

Shapes are objects you can insert into your spreadsheet through the Insert Tab via the Shapes gallery button. These objects can add visualizations to your dashboards, store text, or even serve as buttons to launch macro code.

Here is an outline of the topics covered in this guide:

Creating A New Shape With AddShape()

To create a shape object in Excel using VBA, you must call the AddShape function.

The AddShape function has 4 required inputs in order to generate a new shape:

Type — Name of the type of shape you wish to generate

Left — Where on the spreadsheet the left side of the shape should be located

Top — Where on the spreadsheet the top of the shape should be located

Width — How wide your shape should be

Height — How tall your shape should be

Here is a snippet of VBA code showing how to create 2 shapes and store the newly created shape to a variable for easy reference later on in your code.

Dim shp1 As Shape
Dim shp2 As Shape

‘Create & Store New Shape to Variable
Set shp1 = ActiveSheet.Shapes.AddShape(msoShape16pointStar, _
ActiveCell.Left, ActiveCell.Top, 80, 27)

‘Create & Store New Shape to Variable (use Enum Code)
Set shp2 = ActiveSheet.Shapes.AddShape(94, _
ActiveCell.Left, ActiveCell.Top, 80, 27)

Continue reading through the next few sections to learn how to determine the type, size, and position values you should be using to create your desired shape.

Choosing A Shape Type

There are a TON of shape types available to you through VBA. There are so many in fact, that I have painstakenly gone through and visually cataloged them for your ease in the below slide show.

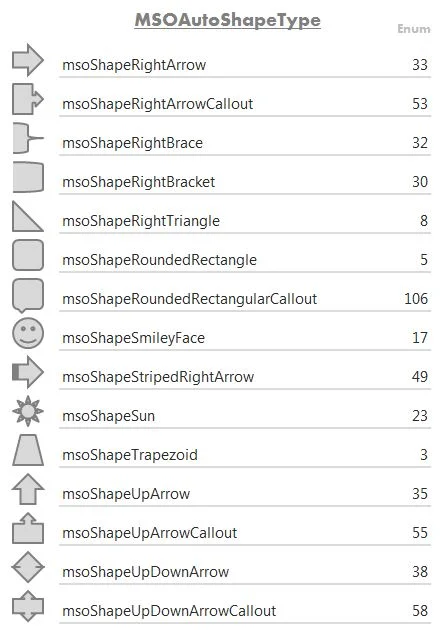

Once you have determined which shape you would like to create, grab either the shape textual name or the enumeration number. You will use this MSOAutoShapeType reference to code the exact shape you want.

If you have a shape already created on your spreadsheet, you can use the following code to figure out its enumeration code that you can reference in your VBA code.

Sub DetermineShapeType()
‘PURPOSE: Display The Shape Type of Selected Shape
‘SOURCE: www.TheSpreadsheetGuru.com

Dim ActiveShape As Shape
Dim UserSelection As Variant

‘Pull-in what is selected on screen
Set UserSelection = ActiveWindow.Selection

‘Determine if selection is a shape
On Error GoTo NoShapeSelected
Set ActiveShape = ActiveSheet.Shapes(UserSelection.Name)
On Error Resume Next

‘Tell User the Shape Type Enumeration Number
MsgBox «The Select Shape Type = » & ActiveShape.AutoShapeType

‘Error Handler
NoShapeSelected:
MsgBox «You do not have a shape selected!»

Determining Shape Position

There are two properties you can modify to change the location of a shape on the spreadsheet with VBA. These two properties are the Left and Top values of the shape.

If you are unsure what the size of your shape should be, there are two popular ways you can size your shape:

Method 1: You can base it on the left and top positions of a cell on your spreadsheet.

The following VBA code shows you how to use the Left value of Cell B1 and the Top value of Cell B10 to reposition the rectangle shape that is created.

Dim shp As Shape

‘Create Shape
Set shp = ActiveSheet.Shapes.AddShape(msoShapeRectangle, _
Range(«B1»).Left, Range(«B10»).Top, 100, 50)

Method 2: You can position the shape to your liking manually on the spreadsheet and read the left and top positions using VBA.

The following VBA code will output a message box that displays the Left and Top positions of a currently selected shape (ActiveShape).

Sub DetermineShapePosition()
‘PURPOSE: Display Selected Shape’s Position
‘SOURCE: www.TheSpreadsheetGuru.com

Dim ActiveShape As Shape
Dim UserSelection As Variant

‘Pull-in what is selected on screen
Set UserSelection = ActiveWindow.Selection

‘Determine if selection is a shape
On Error GoTo NoShapeSelected
Set ActiveShape = ActiveSheet.Shapes(UserSelection.Name)
On Error Resume Next

‘Tell User the Shape Position Values
MsgBox «Left Position = » & ActiveShape.Left & vbNewLine & _
«Top Position = » & ActiveShape.Top

‘Error Handler
NoShapeSelected:
MsgBox «You do not have a shape selected!»

Determining Shape Size

There are two properties you can modify to change the size of a shape with VBA. These two properties are the Width and Height values of the shape.

If you are unsure what the size of your shape should be, there are two popular ways you can size your shape:

Method 1: You can base it on the size of a range of cells

Dim shp As Shape
Dim rng As Range

‘Provide Range for Shape Size
Set rng = Range(«A1:C4»)

‘Create Shape
Set shp = ActiveSheet.Shapes.AddShape(msoShapeRectangle, _
ActiveCell.Left, ActiveCell.Top, rng.Width, rng.Height)

Method 2: You can create the shape to your liking manually and read the width and height using VBA

Sub DetermineShapeSize()
‘PURPOSE: Display Selected Shape’s Size
‘SOURCE: www.TheSpreadsheetGuru.com

Dim ActiveShape As Shape
Dim UserSelection As Variant

‘Pull-in what is selected on screen
Set UserSelection = ActiveWindow.Selection

‘Determine if selection is a shape
On Error GoTo NoShapeSelected
Set ActiveShape = ActiveSheet.Shapes(UserSelection.Name)
On Error Resume Next

‘Tell User the Shape Position Values
MsgBox «Width = » & ActiveShape.Width & vbNewLine & _
«Height = » & ActiveShape.Height

‘Error Handler
NoShapeSelected:
MsgBox «You do not have a shape selected!»

Text Formatting

Dim shp As Shape

‘Create & Store New Shape to Variable
Set shp = ActiveSheet.Shapes.AddShape(msoShape16pointStar, _
ActiveCell.Left, ActiveCell.Top, 80, 27)

‘Add Text To Shape
shp.TextFrame2.TextRange.Text = «My Awesome Shape!»

‘Bold/Italicize/Underline Text
shp.TextFrame2.TextRange.Font.Bold = True
shp.TextFrame2.TextRange.Font.Italic = True
shp.TextFrame2.TextRange.Font.UnderlineStyle = msoUnderlineDottedLine

‘Change Text Color
shp.TextFrame2.TextRange.Font.Fill.ForeColor.RGB = RGB(225, 140, 71)

‘Change Text Size
shp.TextFrame2.TextRange.Font.Size = 14

‘Center Align Text
shp.TextFrame.HorizontalAlignment = xlHAlignCenter
shp.TextFrame.VerticalAlignment = xlVAlignCenter

Fill Color & Borders

Dim shp As Shape

‘Create & Store New Shape to Variable
Set shp = ActiveSheet.Shapes.AddShape(msoShapeRoundedRectangle, _
ActiveCell.Left, ActiveCell.Top, 80, 27)

‘Light Orange Fill
shp.Fill.ForeColor.RGB = RGB(253, 234, 218)

‘Add Dotted Border
shp.Line.DashStyle = msoLineDashDotDot

‘Dark Orange Border
shp.Line.ForeColor.RGB = RGB(252, 213, 181)

‘Adjust Border Thickness
shp.Line.Weight = 2

‘Remove Border
shp.Line.Visible = False

Change Shape Type

If you are looking to change the shape type of an existing type, you can do so by setting the AutoShapeType to a different shape type value.

Dim shp As Shape

‘Store specific shape on spreadsheet to a variable
Set shp = ActiveSheet.Shapes(«Shape1»)

‘Change shape type to oval
shp.AutoShapeType = msoShapeOval

Create Your Own Macro Button With VBA Code

I personally cannot stand the native Excel form control button. It looks so outdated and really makes your spreadsheets look unprofessional. That is why I prefer to use VBA code to create a shape that looks like a button.

I thought this would be a great example to show you a real-world coding example where I need to create and format a shape to have a specific appearance. The following VBA macro code puts everything we have covered in this guide together and provides you with some sample code that comprises of a true shape-building solution.

Sub Create_Button()
‘PURPOSE: Creates a SpreadsheetGuru macro button shape
‘SOURCE: www.TheSpreadsheetGuru.com

Dim bttn As Shape

‘Create & Position Macro Button
Set bttn = ActiveSheet.Shapes.AddShape(msoShapeRoundedRectangle, _
ActiveCell.Left, ActiveCell.Top, 80, 27)

‘Modify Text Formatting
With bttn.TextFrame2.TextRange
.Text = «Macro»
.Font.Bold = msoTrue
.Font.Fill.ForeColor.RGB = RGB(0, 0, 0)
.Font.Size = 14
End With

‘Center Alignment
bttn.TextFrame.HorizontalAlignment = xlHAlignCenter
bttn.TextFrame.VerticalAlignment = xlVAlignCenter

‘Light Gray Fill
bttn.Fill.ForeColor.RGB = RGB(217, 217, 217)

‘No Border
bttn.Line.Visible = msoFalse

Loop Through All Shapes Of Specific Type

If you need to target a specific shape type on your spreadsheet, you can create a loop that tests the AutoShapeType value to filter your results.

The following VBA code example loops through all shape objects in the currently selected spreadsheet and only changes the fill color of the rectangle shapes.

Dim shp As Shape

‘Loop through each shape on ActiveSheet
For Each shp In ActiveSheet.Shapes

‘Only modify rectangle shapes
If shp.AutoShapeType = msoShapeRectangle Then
shp.Fill.ForeColor.RGB = RGB(253, 234, 218)
End If

I Hope This Microsoft Excel Article Helped!

Hopefully, I was able to explain how you use VBA code to create and format shapes on your Excel spreadsheets. If you have any questions about these techniques or suggestions on how to improve them, please let me know in the comments section below.

Hey there! I’m Chris and I run TheSpreadsheetGuru website in my spare time. By day, I’m actually a finance professional who relies on Microsoft Excel quite heavily in the corporate world. I love taking the things I learn in the “real world” and sharing them with everyone here on this site so that you too can become a spreadsheet guru at your company.

Through my years in the corporate world, I’ve been able to pick up on opportunities to make working with Excel better and have built a variety of Excel add-ins, from inserting tickmark symbols to automating copy/pasting from Excel to PowerPoint. If you’d like to keep up to date with the latest Excel news and directly get emailed the most meaningful Excel tips I’ve learned over the years, you can sign up for my free newsletters. I hope I was able to provide you with some value today and I hope to see you back here soon!
